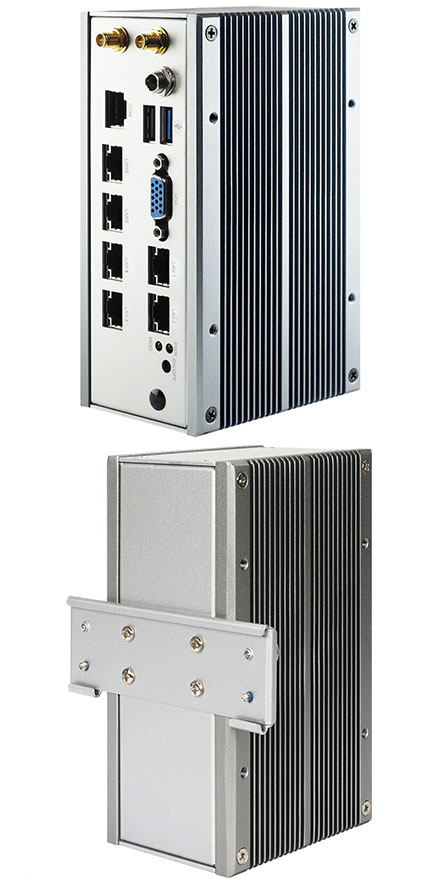

Jetway HBFHP792LW-2807-G (Intel Bay Trail-M, 2GB RAM, DIN-rail, 6x LAN, WLAN)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway HBFHP792LW-2807-G (Intel Bay Trail-M, 2GB RAM, DIN-rail, 6x LAN, WLAN)

The HBFHP792X series is a ruggedized fanless automation PC. The DIN-rail mounting form factor is suitable to be used in control cabinet for industrial automation application. There are four models that can choose according to IO requirements.



Share


SSD (mSATA):
MB Model – JNP792V-2807
Part No HBFHP792L-2807-G HBFHP792G-2807-G HBFHP792C-2807-G HBFHP792U-2807-G
– HBFHP792L-2807-G
– HBFHP792LW-2807-G (WIFI) 		– HBFHP792G-2807-G)
– HBFHP792GW-2807-G (WIFI) 		– HBFHP792C-2807-G
– HBFHP792CW-2807-G (WIFI) 		– HBFHP792U-2807-G
– HBFHP792UW-2807-G (WIFI)
CPU/Chipset – Intel® Bay Trail N2807 Processor
Memory – 2GB DDR3L-1333 on board memory
Storage – 1 * full-size Mini-PCIe slot (for MSATA)
Network – 2 * Intel® GbE (MB / Intel i210IT)
Expansion slot – 1 * M.2-2230 slot (for WiFi expansion)
WiFi card – Support IEEE 802.11a/b/g/n/ac Wireless LAN 2T2R and Bluetooth 4.2
– Support 802.11ac 2×2,Wave-2 compliant with MU-MIMO
Standard I/O – 1 * Power button , 1 * Power LED , 1 * HDD LED
– 1 * USB 3.0 , 1 * USB 2.0
– 1 * VGA , 2 * RJ45 (support WOL)
– 1 * DC-In jack (Lock type)
Expansion I/O HBFHP792L-2807-G HBFHP792G-2807-G HBFHP792C-2807-G HBFHP792U-2807-G
– 4 * RJ45 , 1 * RS232(RJ45 TYPE) – GPIO (input – 16 PIN / output – 16 PIN) – COM 1 ~ 2 / RS232(RS422 / RS485) , COM 3 / RS232 – 2 * USB 3.0 , 4 * USB 2.0 , 1 * RS232 (RS422 / RS485)
Power Source – FSP AC 90~240V to DC Adapter / DC12V-3.3A-40W / LV6
Compliance – CE, FCC, LVD, RoHS
Temperature – Recommended Operating Temperature: 0 ~ 50° C
– Working environment temperature: -20 ~ 70° C
– Storage Temperature: -20 ~ 70° C
Dimensions – 63 (W) x 89 (D) x 149 (H) mm
Packing – Net Weight: 1.5KG
– Gross Weight: 2.2KG
– Color Box dimension: 152 (W) * 162 (D) * 260 (H) mm
OS Support – Windows 7, Windows 8.1, Windows 10, Linux
Warranty – 2 Year limited warranty
