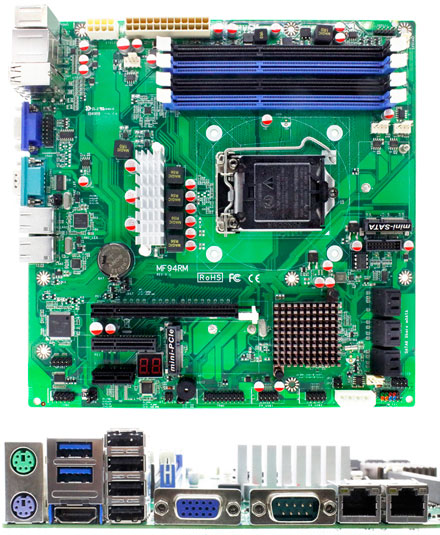

Jetway NMF94RM-Q87 (Intel Q87 Express)

Jetway NMF94RM-Q87 (Intel Q87 Express)

  • Intel® Q87 Express Chipset
  • Supports Intel Gen. 4 LGA 1150 Socket Core™ i3, i5, i7 & Pentium Processors
  • 4 * Dual Channel DDR3-1600/1333 up to 32GB
  • Intel i211AT & i217LM Gigabit LAN
  • Support Intel Active Management Technology ( iAMT 9.0)
  • Support Intel vPRO feature
  • 1 x Mini-PCIe, 1 x mSATA(Shared with Mini-PCIe),
    1 x PCIe x16, 1 x PCIe x4, 1 x PCIe x1
  • 3 x USB 3.0, 6 x USB 2.0
  • 6-ports SATA III 6Gb/s support RAID 0, 1, 5, 10
  • HDMI & VGA Video Outputs
  • Designed for Rackmount application
  • Micro-ATX Form Factor (244mm x 244mm)


Share

279.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (mSATA):

Build/Install:
 Form Factor
Dimensions - Micro-ATX ( 244 x 244mm)
 Processor System
CPU - Intel Gen. 4 LGA 1150 Socket Core i7/i5/i3/Pentium Processor
Core Number - (By CPU)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - Intel Q87 Express chipset
BIOS - AMI 64Mb Flash ROM
 Expansion Slot
PCI - 0
Mini-PCIe - 1
mSATA - 1 (Shared with Mini-PCIe)
PCIe - 1 x16, 1 x4, 1 x1
CFast Card Socket - 0
CF Card Socket - 0
 Memory
Technology - 4 * Dual Channel DDR3-1600/1333 SDRAM
Max. - 32GB
Socket - 4 * Long DIMM
 Graphics
Controller - Intel® HD Graphics
VRAM - Shared Memory
VGA - 1 (Support max resolution 2048X1536)
LVDS - 0
HDMI - 1 (resolution1920x1080)
DVI-I - 0
DisplayPort - 0
MultiDisplay - Yes (Dual Display)
 Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: INi211AT & INi217LM
Connector - 2 * RJ 45
 SATA
Max Data Transfer Rate - 6 * SATAIII (6.0Gb/s)
 Rear I/O
VGA - 1
DVI-I - 0
HDMI - 1
DisplayPort - 0
Ethernet - 2
RJ11 - 0
USB - 4 (4 * USB 2.0 + 2 * USB3.0)
Audio - 0
Serial - 1
Parallel - 0
eSATA - 0
PS2 - 1 for Keyboard, 1 for Mouse
DC-input - 0
 Internal Connector
USB - 4 ( 2 * USB 2.0 via 9 pin header, 1 * USB3.0 )
PS2 - 0
LVDS / inverter - 0
VGA - 1 (Shared with rear VGA port)
Serial - 1
SATA - 6 * SATAIII (6.0Gb/s)
mPCIe - 1
Parallel - 0
mSATA - 1 (Shared with mPCIe)
CIR - 0
GPIO 8-bit - 4in / 4 out
Chassis intrusion - 1 (via 2pin header)
Audio Header - 0
TPM header - 1
CPU Fan - 1
System FAN - 4
 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR - ATX PWR (8+24 pin)
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
 Environment
Temperature - Operating: 0℃– 60℃
- Storage: -20℃– 85℃
